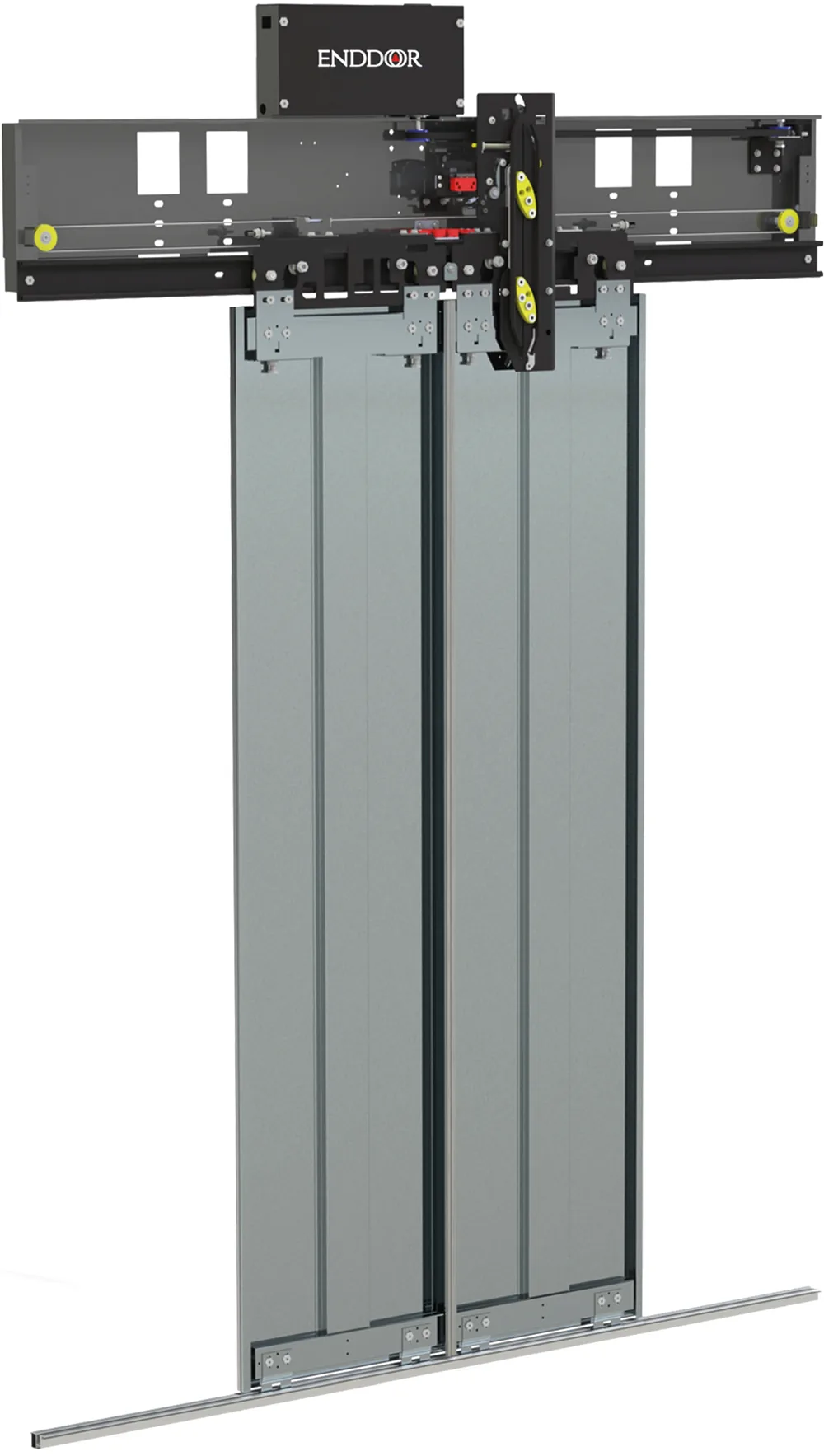

Central 2-Panel Car Door
Car Door · Central
The central car door offers fast, balanced passage with a symmetrical mechanism that opens the panels from the middle to both sides. Rollers running inside the rail, a forward-backward adjustable stopper and a body made of 2 mm sheet metal ensure quiet, precise operation for many years.
- Clear opening
- 600–1400 mm
- Panels
- 2 panels
- Standard
- 81-20/50
Central Car Door Mechanism

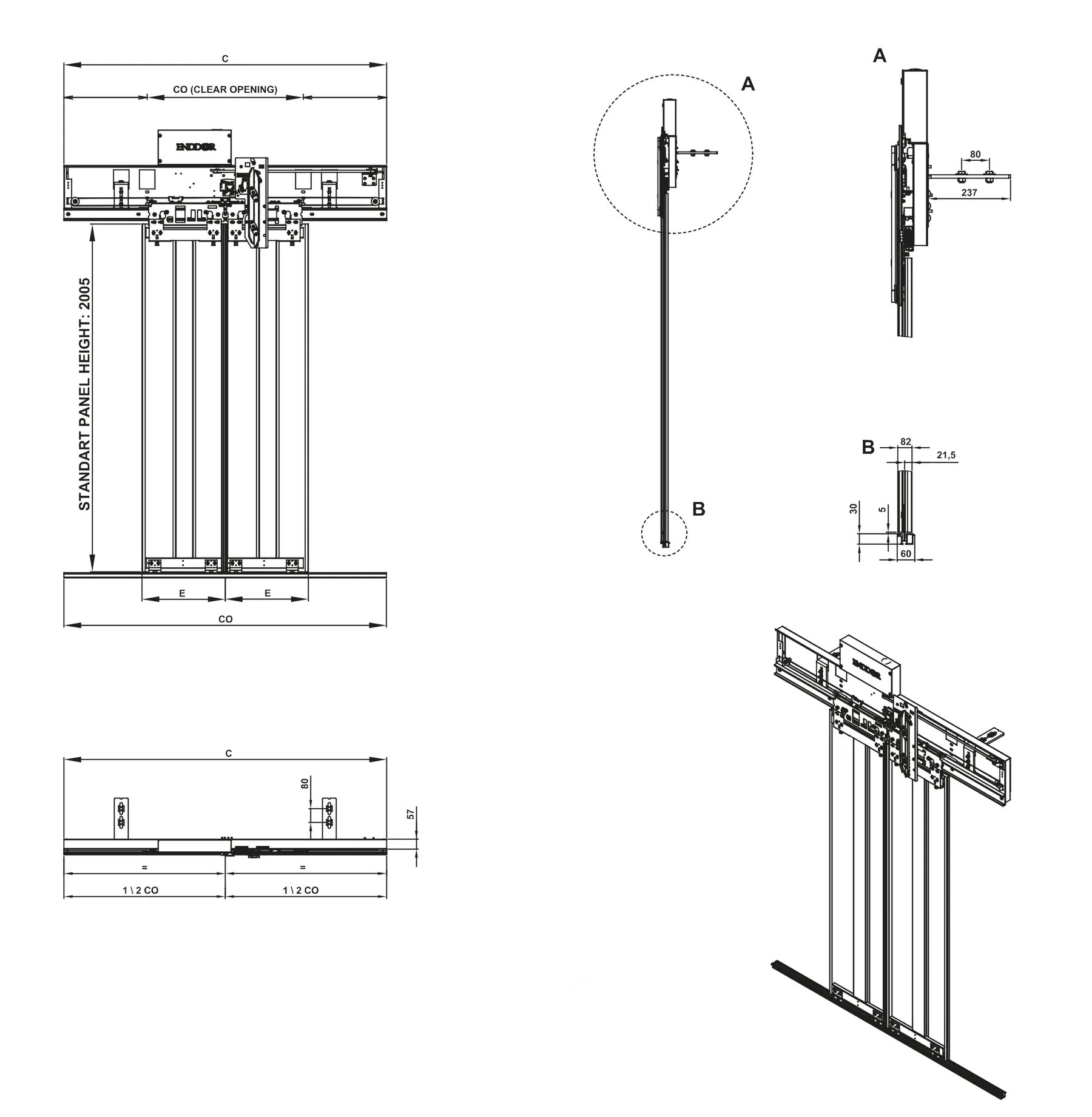

Technical Dimensions
Dimensions and detail section.
Zoom +| CO | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | 1260 | 1360 | 1460 | 1560 | 1660 | 1760 | 1860 | 2060 | 2260 | 2460 | 2660 | 2860 |
| A | 320 | 345 | 370 | 395 | 420 | 445 | 470 | 520 | 570 | 620 | 670 | 720 |
COClear opening width
CMechanism width
APanel fixing dimension
- Standard panel height
- 2005 mm
Contact our technical team for non-standard dimensions and special applications.
Features & Benefits
Why this mechanism?

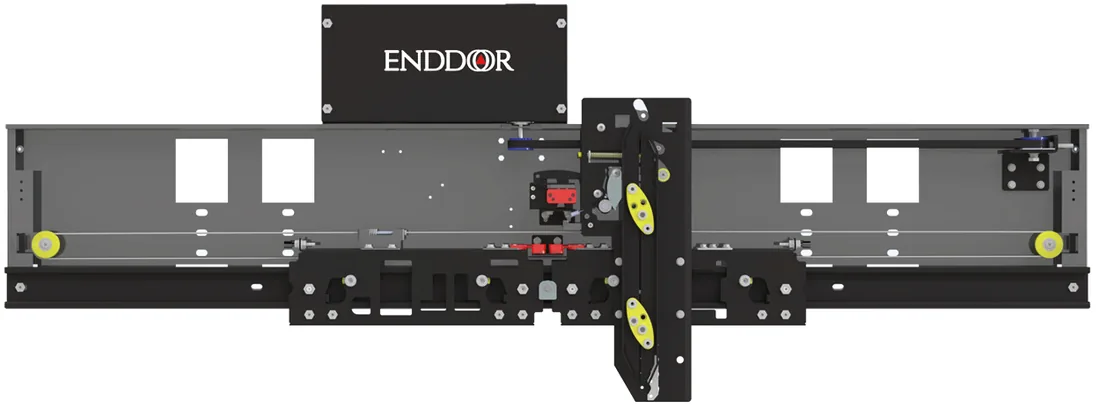

Car Mechanism
Features
- Vertical gearmotor
- 10 mm welded hinges
- Rollers running inside the rail
- Adjustable stopper
- Motor positioned on the side
Benefits
- Operates more smoothly than a side-mounted gearmotor
- Does not flex, providing rigidity
- Consolidates the mechanism as a whole, eliminating oscillation
- Allows forward-backward adjustment
- The mechanism stays at a minimum level with the car, freeing space for the refuge area required by EN 81-20
Skate
Features
- Single-piece design on the body
- Works by pushing instead of pulling, with a single spring
- 5 bearings
- Can be disassembled
- Vertically adjustable skate blade
- ABS plastic material
- Body and rails made of 2 mm sheet metal
- Powered by SMPS
Benefits
- Ensures integrity
- Extends the lifespan of the spring and the skate, providing comfort
- Sealed bearings need no lubrication or maintenance, extending lifespan and increasing precision
- Can be disassembled and serviced part by part
- Allows adjustment even on 2100 mm doors
- High strength, low wear, maximum surface smoothness; unaffected by moisture or water
- Holds steady at 24 V, supplying a constant voltage during fluctuations and protecting the card
Panels
Features
- Panels are not direction-specific
- Interlocking lower skate plate
- Adjustable lower skate plate
- Adjustable upper hanger plate
- 4 additional bolts on the upper hanger plate
Benefits
- Can be used with either right- or left-hand mechanisms
- Eliminates the risk of coming off the rail
- Adjustable up and down
- Adjustable in four directions: left-right and up-down
- Prevents the panel from loosening
Finish Options
Surface and panel options.
Bronze Mirror Stainless Steel
Mirror-finish stainless steel
Smoke Mirror Stainless Steel
Mirror-finish stainless steel
Gold Mirror Stainless Steel
Mirror-finish stainless steel
Glass Panel Door
Laminated glass
Electrostatic Painted
Standard RAL 7032
