With its vertical gearmotor and compact mechanism that stays level with the car, the telescopic car door frees up the refuge space required by EN 81-20/50. Welded 10 mm hinges join the mechanism into a single unit and eliminate oscillation, while the single-piece modular skate offers a long service life with maintenance-free sealed bearings.

Clear opening: 700–1300 mm
Panels: 2 panels
Standard: 81-20/50

Request a Quote →Dimensions

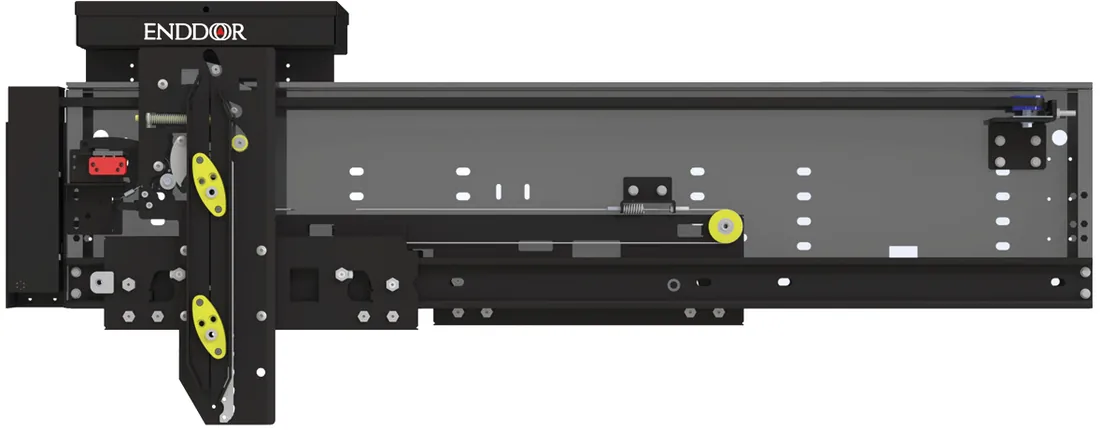

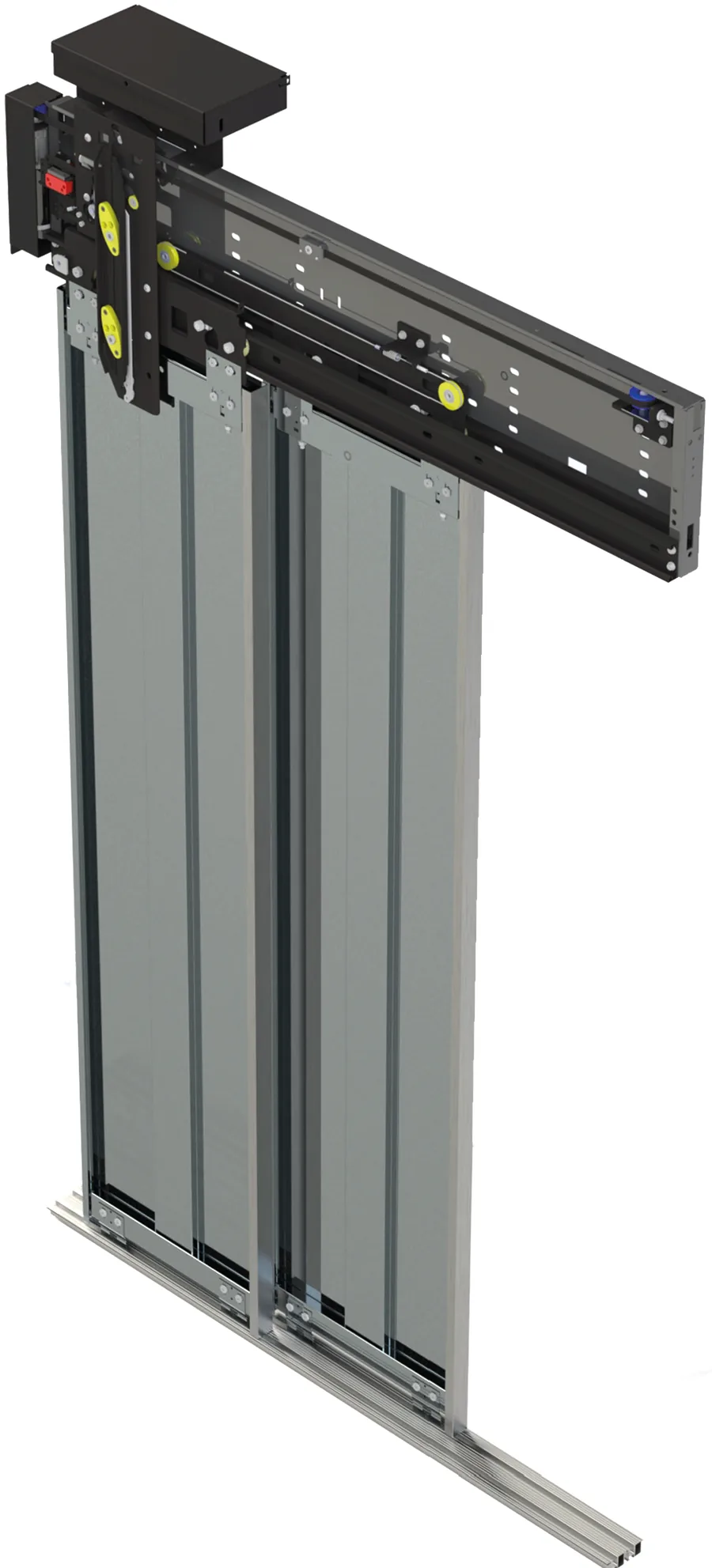

Telescopic Car Door Mechanism

Technical Dimensions

Dimensions and detail section.

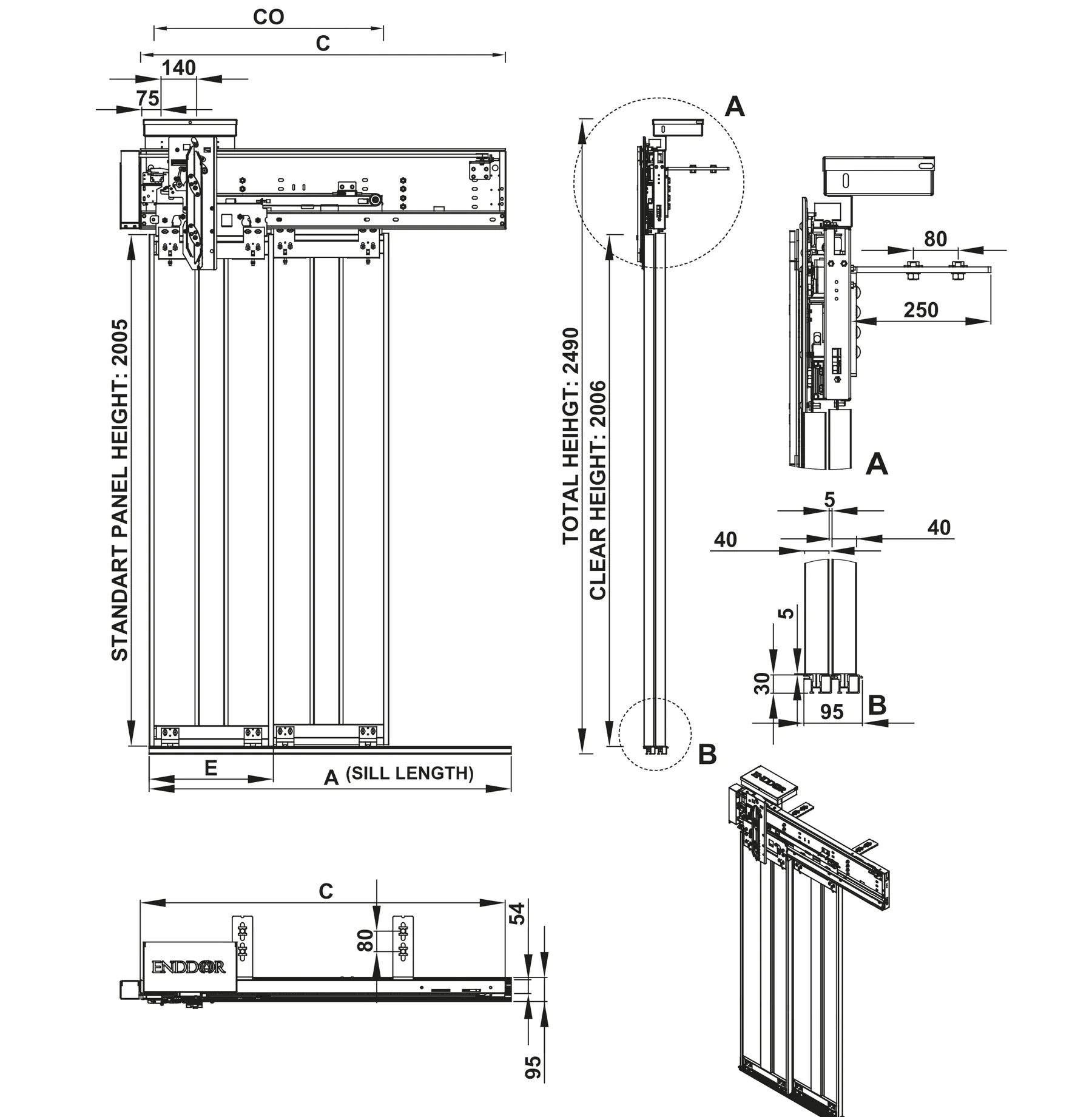

Telescopic 2-Panel Car Door technical drawing

Zoom +

Detail section · dimensions in mm
CO	700	800	900	1000	1100	1200	1300
C	1130	1280	1430	1580	1730	1880	2030
A	1120	1270	1420	1570	1720	1870	2020
E	387	437	487	537	587	637	687

COClear opening width

CMechanism width

ASill length

EPanel width

Total height: 2490 mm
Clear height: 2006 mm
Standard panel height: 2005 mm

Contact our technical team for non-standard dimensions and special applications.

Features & Benefits

Why this mechanism?

Car Mechanism

Features

Vertical gearmotor
10 mm welded hinges
Rollers running inside the rail
Adjustable stopper
Motor positioned on the side

Benefits

Operates more smoothly than a side-mounted gearmotor
Does not flex, providing rigidity
Consolidates the mechanism as a whole, eliminating oscillation
Allows forward-backward adjustment
The mechanism stays at a minimum level with the car, freeing space for the refuge area required by EN 81-20

Skate

Features

Single-piece design on the body
Works by pushing instead of pulling, with a single spring
5 bearings
Can be disassembled
Vertically adjustable skate blade
ABS plastic material
Body and rails made of 2 mm sheet metal
Powered by SMPS

Benefits

Ensures integrity
Extends the lifespan of the spring and the skate, providing comfort
Sealed bearings need no lubrication or maintenance, extending lifespan and increasing precision
Can be disassembled and serviced part by part
Allows adjustment even on 2100 mm doors
High strength, low wear, maximum surface smoothness; unaffected by moisture or water
Holds steady at 24 V, supplying a constant voltage during fluctuations and protecting the card
