Engineering in the details.
From the skate to the hangers, from the motor to the panels, every component is designed for full EN 81-20/50 compliance, long life and easy installation.
Modular Skate Design
Fully compliant with the 81-20/50 standard; single-piece body that can be disassembled.

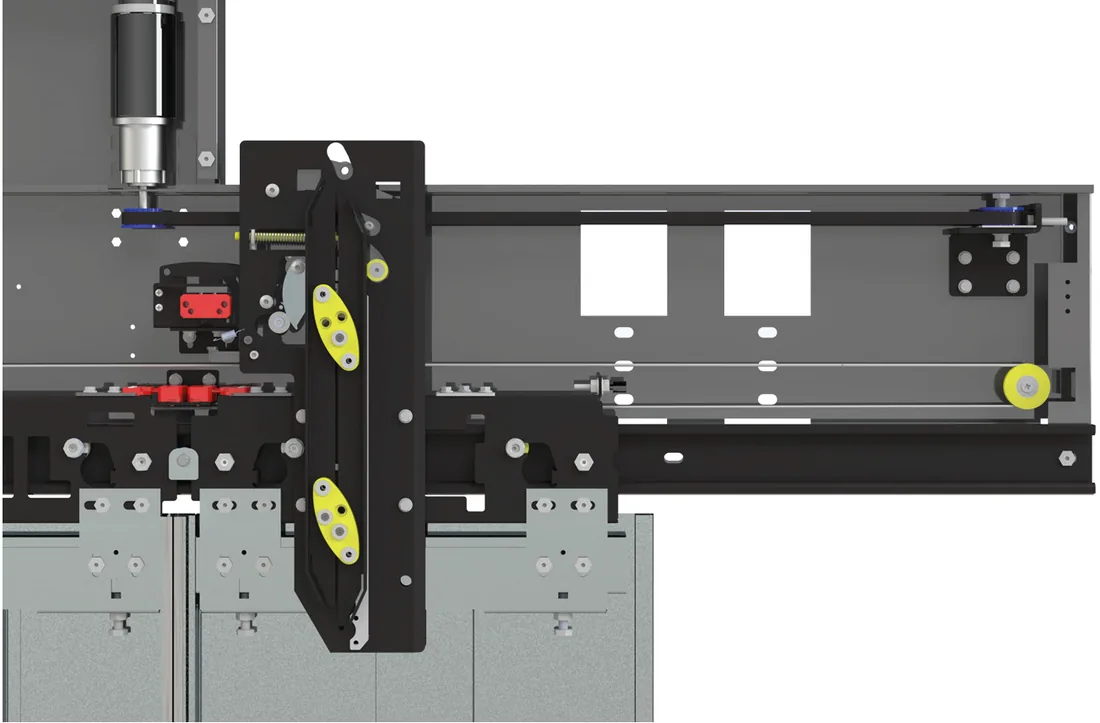

Vertical Gearmotor
A vertical gearmotor for standard doors; the mechanism stays level with the car.

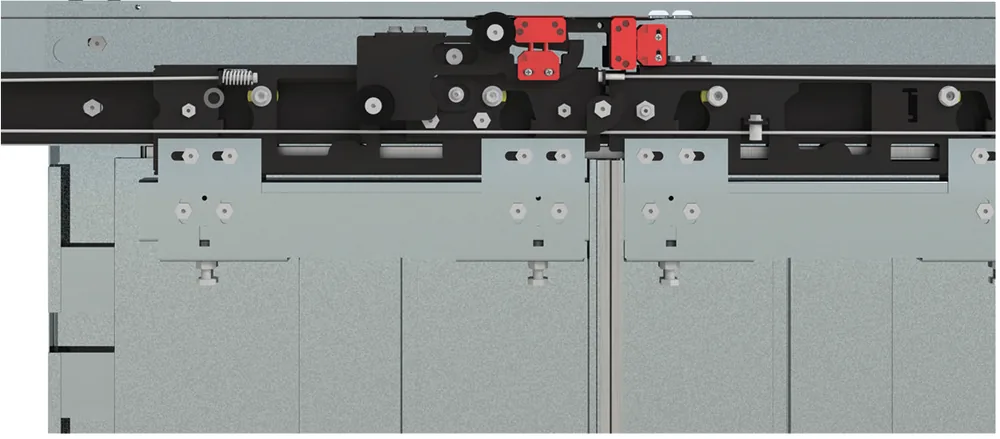

Ergonomic Hanger Type
Adjustable upper hanger plate with 4 extra bolts, so the panels never loosen.

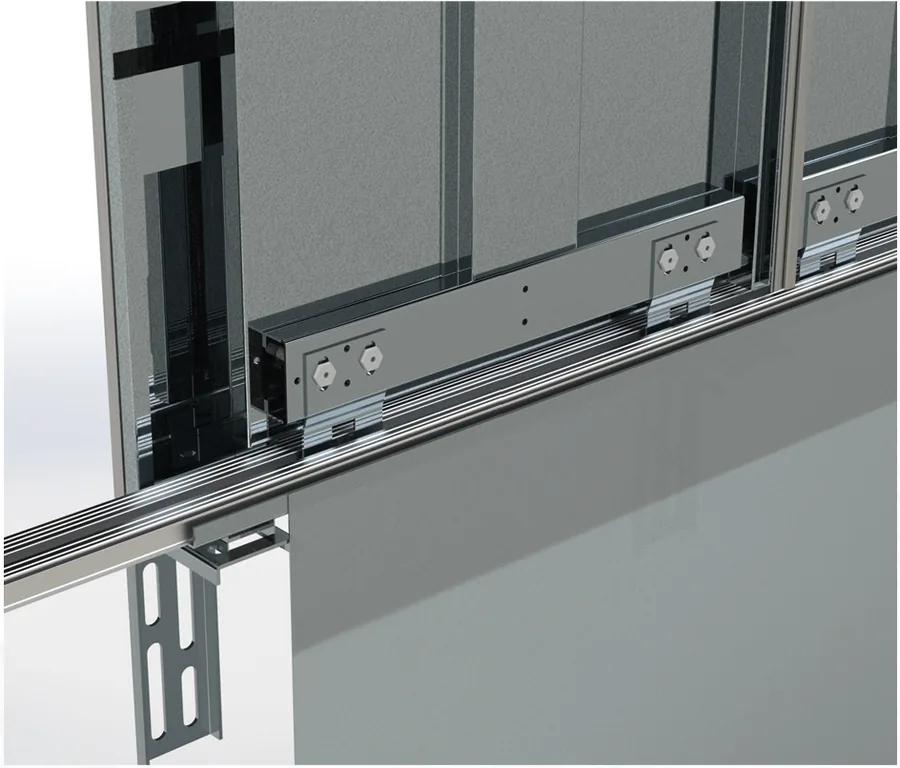

Ergonomic Skate Plate
Interlocking, adjustable lower skate plate eliminates the risk of derailing.
Features & Benefits
Every component has a purpose.
Car Mechanism
Features
- Vertical gearmotor
- 10 mm welded hinges
- Rollers running inside the rail
- Adjustable stopper
- Motor positioned on the side
Benefits
- Operates more smoothly than a side-mounted gearmotor
- Does not flex, providing rigidity
- Consolidates the mechanism as a whole, eliminating oscillation
- Allows forward-backward adjustment
- The mechanism stays at a minimum level with the car, freeing space for the refuge area required by EN 81-20
Plus Model Car Mechanism
Features
- Brushless imported motor and imported control card
- Slim-type brushless motor
- Special mechanism rail for the Plus model
Benefits
- Stable, fast and comfortable operation in high-rise buildings and heavy traffic
- Installation advantage in shafts with a low headroom, thanks to the maximum mechanism height
- High strength, comfort and quiet operation
Skate
Features
- Single-piece design on the body
- Works by pushing instead of pulling, with a single spring
- 5 bearings
- Can be disassembled
- Vertically adjustable skate blade
- ABS plastic material
- Body and rails made of 2 mm sheet metal
- Powered by SMPS
Benefits
- Ensures integrity
- Extends the lifespan of the spring and the skate, providing comfort
- Sealed bearings need no lubrication or maintenance, extending lifespan and increasing precision
- Can be disassembled and serviced part by part
- Allows adjustment even on 2100 mm doors
- High strength, low wear, maximum surface smoothness; unaffected by moisture or water
- Holds steady at 24 V, supplying a constant voltage during fluctuations and protecting the card
Landing Door Mechanism
Features
- Narrow mechanism
- Full-length mechanism rail
- Long hinges of 30 cm
- Mechanism spring running from the side, inside the casing
- Interlocking aluminium sills
Benefits
- Keeps the material organised and makes installation easier
- Integrates the mechanism into a single piece
- Suitable for buildings with high floor-to-floor heights
- The wider working area of the spring eliminates potential noise
- Ensures integrity
Panels
Features
- Panels are not direction-specific
- Interlocking lower skate plate
- Adjustable lower skate plate
- Adjustable upper hanger plate
- 4 additional bolts on the upper hanger plate
Benefits
- Can be used with either right- or left-hand mechanisms
- Eliminates the risk of coming off the rail
- Adjustable up and down
- Adjustable in four directions: left-right and up-down
- Prevents the panel from loosening
