Telescopic 2-Panel Landing Door
Landing Door · Telescopic
On the telescopic landing door, both panels slide past each other and open to the same side. This gives a wide clear opening even in projects where shaft width is limited. With its narrow single-piece mechanism, full-length mechanism rail and interlocking aluminium sills, it is easy to install, quiet and long-lasting.
- Clear opening
- 700–1300 mm
- Panels
- 2 panels
- Standard
- 81-20/50

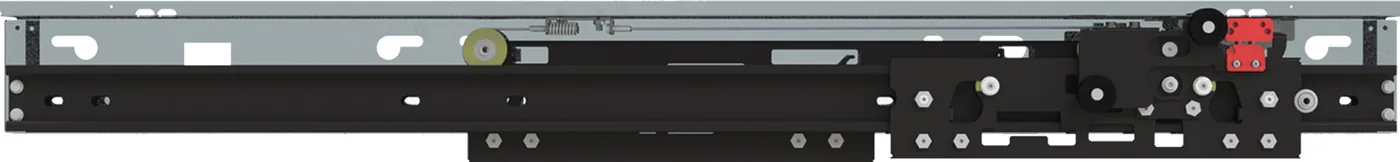

Telescopic Landing Door Mechanism

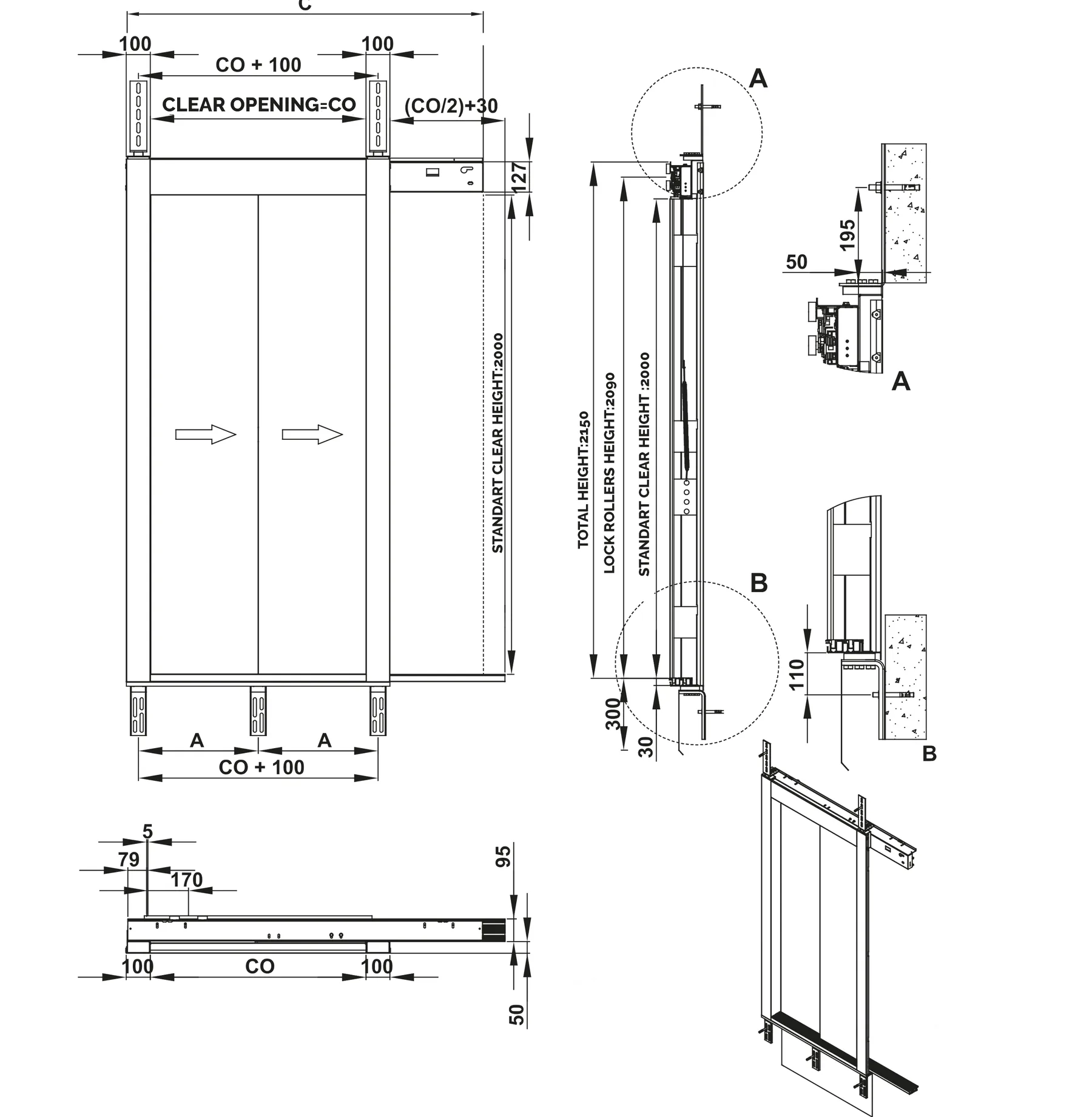

Technical Dimensions
Dimensions and detail section.
Zoom +| CO | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
|---|---|---|---|---|---|---|---|
| C | 1175 | 1325 | 1475 | 1625 | 1775 | 1925 | 2075 |
| A | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
COClear opening width
COverall door width
ASill fixing distance
- Total height
- 2150 mm
- Lock roller height
- 2090 mm
- Standard clear height
- 2000 mm
Contact our technical team for non-standard dimensions and special applications.
Features & Benefits
Why this mechanism?
Landing Door Mechanism
Features
- Narrow mechanism
- Full-length mechanism rail
- Long hinges of 30 cm
- Mechanism spring running from the side, inside the casing
- Interlocking aluminium sills
Benefits
- Keeps the material organised and makes installation easier
- Integrates the mechanism into a single piece
- Suitable for buildings with high floor-to-floor heights
- The wider working area of the spring eliminates potential noise
- Ensures integrity
Panels
Features
- Panels are not direction-specific
- Interlocking lower skate plate
- Adjustable lower skate plate
- Adjustable upper hanger plate
- 4 additional bolts on the upper hanger plate
Benefits
- Can be used with either right- or left-hand mechanisms
- Eliminates the risk of coming off the rail
- Adjustable up and down
- Adjustable in four directions: left-right and up-down
- Prevents the panel from loosening
Finish Options
Surface and panel options.
Bronze Mirror Stainless Steel
Mirror-finish stainless steel
Smoke Mirror Stainless Steel
Mirror-finish stainless steel
Gold Mirror Stainless Steel
Mirror-finish stainless steel
Glass Panel Door
Laminated glass
Electrostatic Painted
Standard RAL 7032
