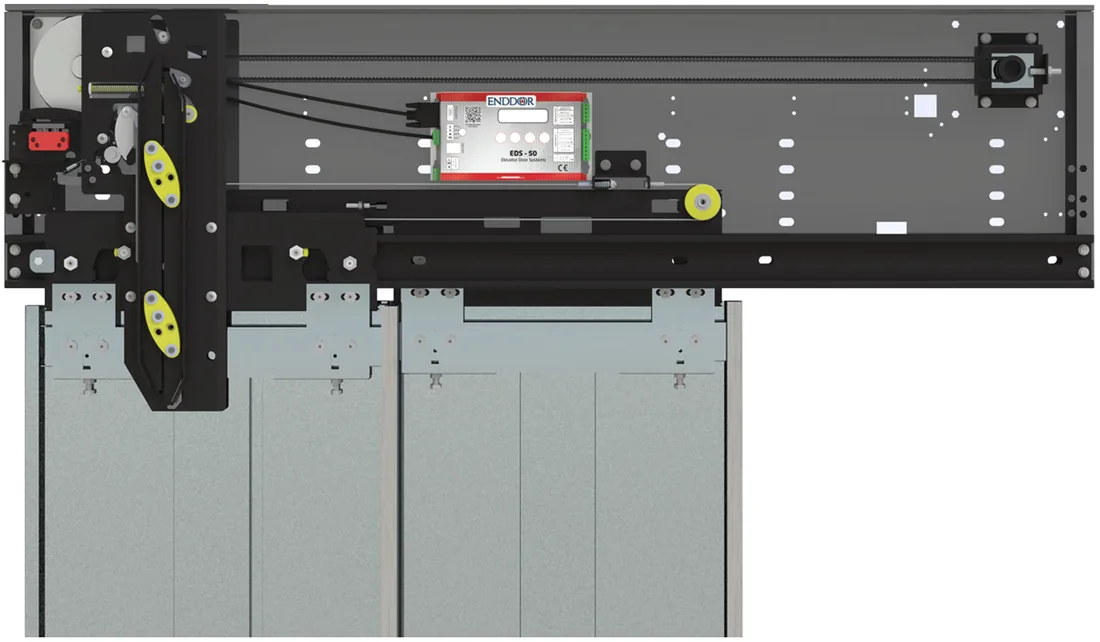

Telescopic 2-Panel Plus Car Door
Car Door · Telescopic · Plus
The Plus series telescopic car door combines a brushless imported motor with an imported control card for stable, fast and comfortable operation in high-rise buildings and heavy traffic. Its slim motor and the mechanism rail designed for the Plus model give an installation advantage in shafts with low headroom.
- Clear opening
- 700–1300 mm
- Panels
- 2 panels
- Standard
- 81-20/50

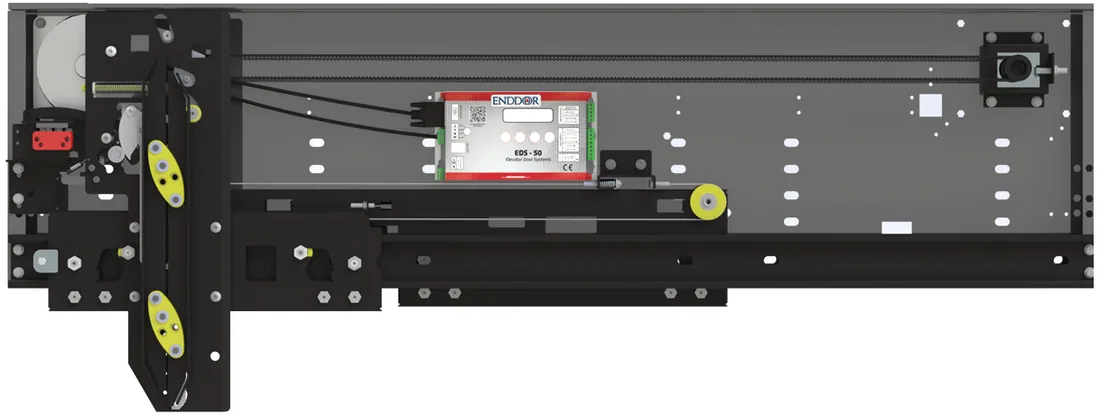

Telescopic Plus Car Door Mechanism

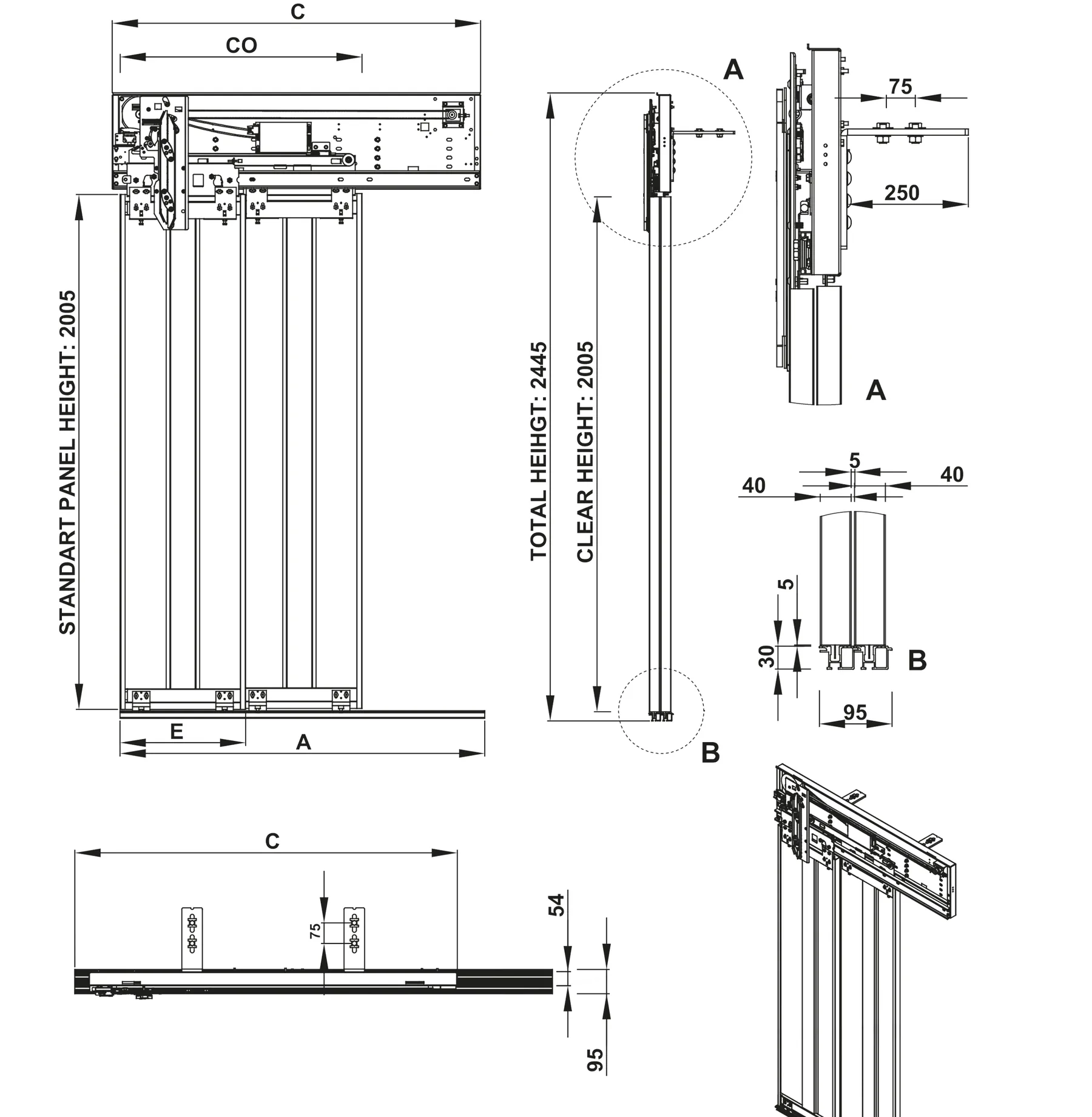

Technical Dimensions
Dimensions and detail section.
Zoom +| CO | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
|---|---|---|---|---|---|---|---|
| C | 1130 | 1280 | 1430 | 1580 | 1730 | 1880 | 2030 |
| A | 1120 | 1270 | 1420 | 1570 | 1720 | 1870 | 2020 |
| E | 387 | 437 | 487 | 537 | 587 | 637 | 687 |
COClear opening width
CMechanism width
ASill length
EPanel width
- Total height
- 2445 mm
- Clear height
- 2005 mm
- Standard panel height
- 2005 mm
Contact our technical team for non-standard dimensions and special applications.
Features & Benefits
Why this mechanism?
Plus Model Car Mechanism
Features
- Brushless imported motor and imported control card
- Slim-type brushless motor
- Special mechanism rail for the Plus model
Benefits
- Stable, fast and comfortable operation in high-rise buildings and heavy traffic
- Installation advantage in shafts with a low headroom, thanks to the maximum mechanism height
- High strength, comfort and quiet operation
Skate
Features
- Single-piece design on the body
- Works by pushing instead of pulling, with a single spring
- 5 bearings
- Can be disassembled
- Vertically adjustable skate blade
- ABS plastic material
- Body and rails made of 2 mm sheet metal
- Powered by SMPS
Benefits
- Ensures integrity
- Extends the lifespan of the spring and the skate, providing comfort
- Sealed bearings need no lubrication or maintenance, extending lifespan and increasing precision
- Can be disassembled and serviced part by part
- Allows adjustment even on 2100 mm doors
- High strength, low wear, maximum surface smoothness; unaffected by moisture or water
- Holds steady at 24 V, supplying a constant voltage during fluctuations and protecting the card
Panels
Features
- Panels are not direction-specific
- Interlocking lower skate plate
- Adjustable lower skate plate
- Adjustable upper hanger plate
- 4 additional bolts on the upper hanger plate
Benefits
- Can be used with either right- or left-hand mechanisms
- Eliminates the risk of coming off the rail
- Adjustable up and down
- Adjustable in four directions: left-right and up-down
- Prevents the panel from loosening
Finish Options
Surface and panel options.
Bronze Mirror Stainless Steel
Mirror-finish stainless steel
Smoke Mirror Stainless Steel
Mirror-finish stainless steel
Gold Mirror Stainless Steel
Mirror-finish stainless steel
Glass Panel Door
Laminated glass
Electrostatic Painted
Standard RAL 7032
