Central 2-Panel Landing Door
Landing Door · Central

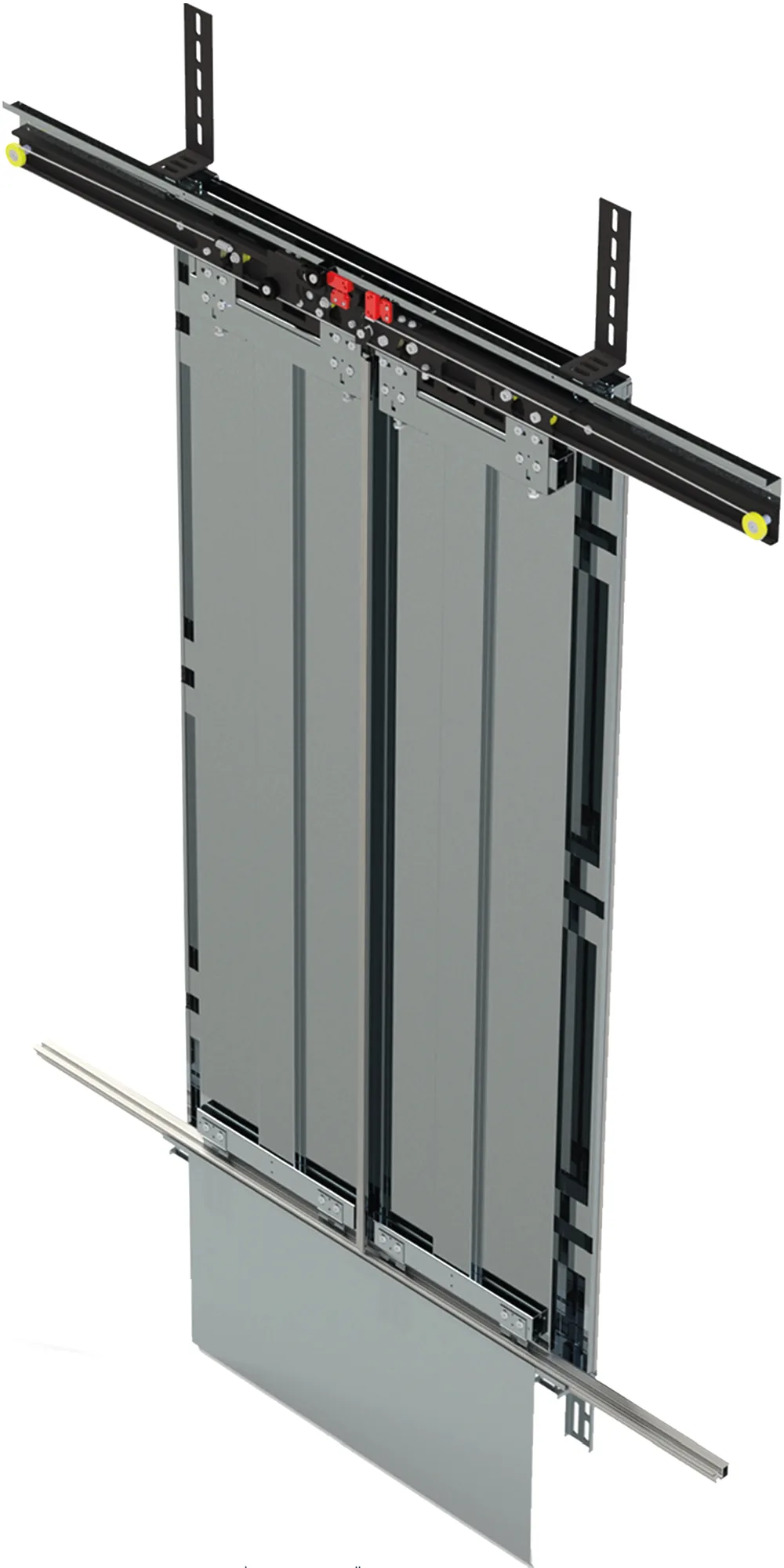

On the central landing door, the panels open symmetrically from the middle to both sides. Its short opening time and balanced movement make it ideal for residential, office and commercial buildings with heavy passenger traffic. It is produced in a wide range of clear openings from 600 mm to 1400 mm.
- Clear opening
- 600–1400 mm
- Panels
- 2 panels
- Standard
- 81-20/50

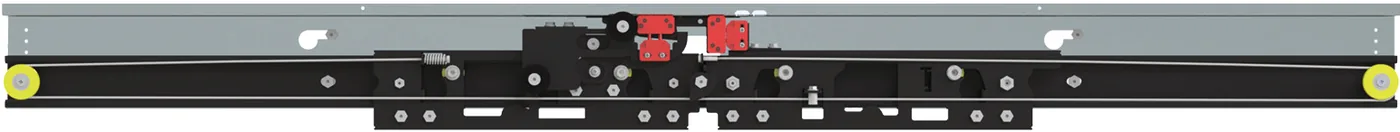

Central Landing Door Mechanism

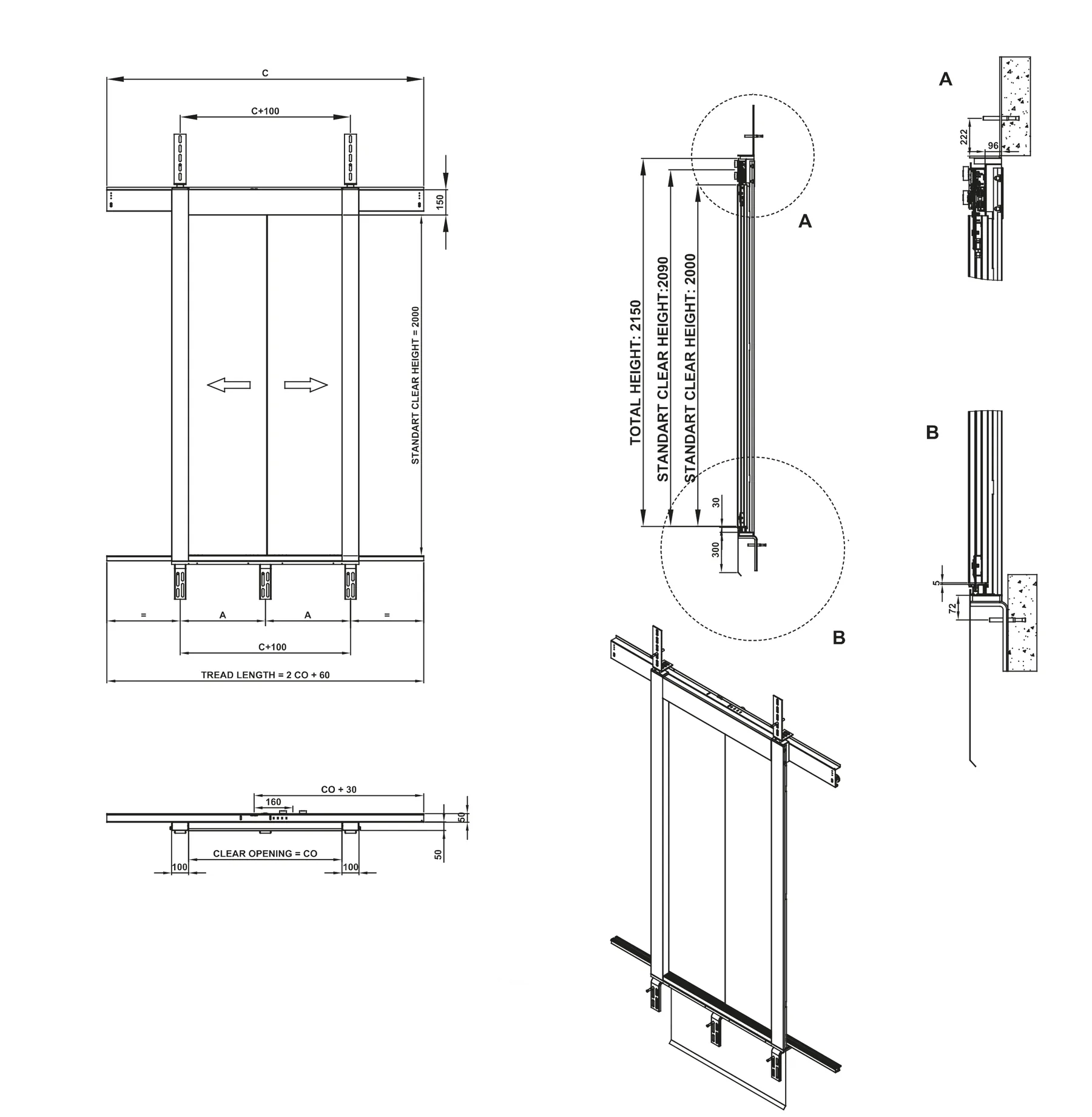

Technical Dimensions
Dimensions and detail section.
Zoom +| CO | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | 1260 | 1360 | 1460 | 1560 | 1660 | 1760 | 1860 | 2060 | 2260 | 2460 | 2660 | 2860 |
| A | 350 | 375 | 400 | 425 | 450 | 475 | 500 | 550 | 600 | 650 | 700 | 750 |
COClear opening width
COverall door width
ASill fixing distance
Tread length = 2 × CO + 60
- Total height
- 2150 mm
- Standard clear height
- 2090 mm
- Standard net height
- 2000 mm
Contact our technical team for non-standard dimensions and special applications.
Features & Benefits
Why this mechanism?
Landing Door Mechanism
Features
- Narrow mechanism
- Full-length mechanism rail
- Long hinges of 30 cm
- Mechanism spring running from the side, inside the casing
- Interlocking aluminium sills
Benefits
- Keeps the material organised and makes installation easier
- Integrates the mechanism into a single piece
- Suitable for buildings with high floor-to-floor heights
- The wider working area of the spring eliminates potential noise
- Ensures integrity
Panels
Features
- Panels are not direction-specific
- Interlocking lower skate plate
- Adjustable lower skate plate
- Adjustable upper hanger plate
- 4 additional bolts on the upper hanger plate
Benefits
- Can be used with either right- or left-hand mechanisms
- Eliminates the risk of coming off the rail
- Adjustable up and down
- Adjustable in four directions: left-right and up-down
- Prevents the panel from loosening
Finish Options
Surface and panel options.
Bronze Mirror Stainless Steel
Mirror-finish stainless steel
Smoke Mirror Stainless Steel
Mirror-finish stainless steel
Gold Mirror Stainless Steel
Mirror-finish stainless steel
Glass Panel Door
Laminated glass
Electrostatic Painted
Standard RAL 7032
